Chimey Limey 30

CL-30 Specs
Power Output 30 Watts
Output Tubes 4 - EL84 (Fixed Bias)
Preamp Tubes 1 - 12dw7/ecc832, 1 - 12AX7
Rectifier Tube - GZ34
Controls Volume, Bright, Tone, Cut
Switchable Controls Boost

Available Configurations

Head TV Front or Glaze Panel
2x12 Combo Split Panel Birch Ply
Dimensions See our cabinets page for more info

Click here for Pricing

Design Description

CL-30 Chimey Limey

The CL series amps were developed to deliver the magical bloom, chime, and grind of the coveted British amps from the 60's, but in more abundance and with higher quality than the currently available offerings from "the big V". And, with the cosmetics and standard color scheme of the CL-15, we lend credence to the great nostalgic Watkins Dominator of the 50's.

Part of why we chose the 1960 version of the "AC" amps is the pure tone of the more simple circuit vs the more complex (though still wonderful sounding) Top Boost circuit. However, part of the magic of the 1960 circuit is also part of the problem with that version as well, the EF86 pentode tube.

The EF86 pentode sounds amazing and works great with pedals, but it is unreliable and prone to microphonics. I suspect that's part of why the "V" design changed to use a 12ax7 triode input stage later in that decade.

We've discovered a technique for wiring a dual triode externally to operate as a pentode (like the EF86!). We use a 12dw7 (JJ ecc832) tube which is readily available as a new production tube. The result is the same level of gain and dynamics of the ef86 without the unreliability and microphonics. It also offers the same great prominent boost characteristics when engaging the Chimey Limey's boost mode. The result is what many consider to be the best "V" style amp available today.

The CL-30 offers the epitome "V" goodness. Huge, 3-dimensional cleans that bloom and breath, revealing even the slightest nuances of your guitar, pickups and hands. If jangle is your thing, it's there too, just grab your Ric, click the tone clicker down to reduce the bass and you've got instant Mr. Tamborine Man.

When pushed the CL-30 smoothly transitions into some of the most beautiful, sweet, and dynamic chimey power tube overdrive you are likely to hear this side of the 60's!

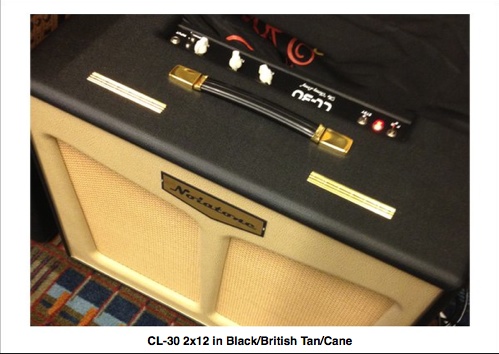

The CL-30 is only offered as a 2x12 as it needs that to be what it is. Load it either with a pair of 15 watt WGS Black and Blue Alnicos, or one Black and Blue and one Blackhawk 50 watt Alnico...glorious!

Plug into a Chimey Limey and you will immediately understand how it got it's name!
